| Μέγιστος όγκος: | 60L | διάμετρος βιδών: | 90mm |
|---|---|---|---|
| Αντλία κίνησης αντλιών πετρελαίου: | 15KW | Δύναμη στερέωσης: | 320kN |
| Αποθήκευση Materail: | 6.6L | Ανώτατη διάμετρος κύβων: | 340mm |
| Υψηλό φως: | 35L πλαστική μηχανή σχήματος τυμπάνων,HDPE πλαστική μηχανή σχήματος τυμπάνων |
||

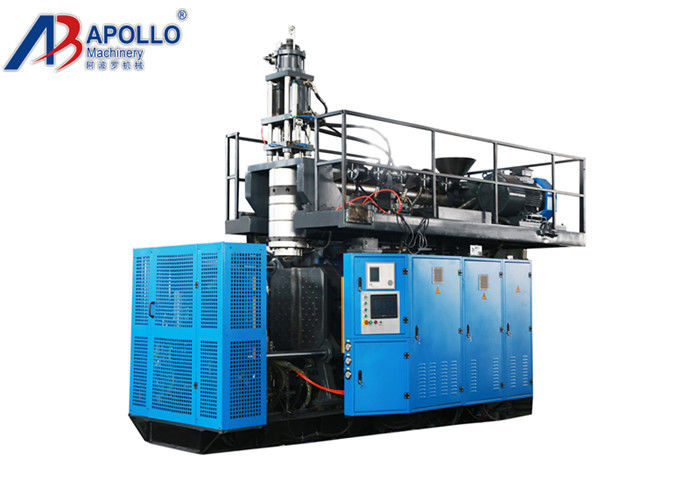

25L, 30L, 35L, 50L plastic oil yellow drum extrusion automatic blow molding machine in blue
Production line of blow molding machine
Product: 50L
Power supply: 380v 50 Hz Tri-phase
Output capacity: 1000pcs/day
Suitable raw material: HDPE
Model No.: ABLD90(single station single die head)
This type of blow molding machine ABLD90 can produce bottle, kettle, can, flower pot etc. The machine is especially designed for producing with material PE, PVC, PP and so on.
Unit price (including one series of spare parts)
| Basic parameters | Suitable materail | HDPE | |
| Max volume | 60L | ||
| Capacity | 1000pcs/day | ||
| Size | LXWXH=5.2x2.9x4.6(M) | ||
| Weight | 13.5T | ||
| System class | System details | Parameter | Remark |
| Plasticizing system | Summary | High efficiency and low consumption plasticizing system, variable frequency speed regulation, automatic protection function at low temperature extrusion starting | |
| Gear box | Hard Tooth Surface, High Strength, Low Noise Antiwear Reducer | ||
| Barrel screw |
∮90mm,L/D=25 38CrMoALA |
The barrel feeding place is available with |
|
| Plasticizing | 150Kg/H | ABS | |
| Heating zone | 4 | Auto heading | |
| Heating power | 18KW/H | ||
| Screw motor | 3 phase induction motor | ||
| Cooling fan | 4 | Auto cooling | |
| Extruction head | Summary |
High quality alloy steel with central feeding
|
|
| Head number | 1 | ||
| Head centre distance | / | ||
| Max. die | ∮340mm | ||
| Heating zones | 4 Ceramic heater | ||
| Heating power | 18KW | ||
| Open and close mold | Summary | High Strength, High Rigidity, Center Locking, Low Friction Mould Opening and Closing, Mould Shifting Mechanism | |
| Clamping force | 320KN | ||
| Mold stroke | 450～1100mm | ||
| Template size | WXH: 900x900mm | ||
| Mould thickness range | 500-100mm | ||
| Electrical control system | Summary |
|
|
| Operating interface | Touch screen operation, fault alarm auto-display | ||
| Action control | XIEHE system from TAIWAN, Programming in Chinese and English | ||
| Electrical protection | Electrical Short Circuit Automatic Protection Function with Current Overload | ||
| Hydraulic system | Summary | Multifunctional Hydraulic Integrated Block, Proportional Control, High Efficiency and Energy Saving | |
| Oil pump motor | Servo system | ||
| Oil pump | Servo pump SUMITOMO from Switzerland | ||
| Valve parts | Imported Hydraulic Valve Assembly | ||
| Oil pipe | Double-Layer High Pressure Wear-Resistant Tubing | ||
| System pressure | 100Kg/cm² | ||
| Cooling ways | Independent water circulation, oil cooler cooling | ||
| Air system | Summary | Taiwanese AIRTAC Pneumatic Component Combination, Reserve One Way Action | |
| Air pressure | 0.8Mpa | ||
| Air displacement | 1.0M3/min | ||
| Soleniod valve | AIRTAC from TAIWAN | ||
| Cooling system | Summary | Mold, barrel, oil source three independent cooling water lines, non-interference with each other | |
| Cooling medium | Natural water and groundwater (frozen water is better) | ||
| Water flowing | 90L/min | ||
| Water pressure | 0.3MPa | ||
